Notas sobre notas: analizando siete años de datos de streaming de música

df = pl.read_csv("data/distrokid.tsv", separator="\t", encoding="ISO-8859-1")

# Drop columns.
df = df.drop(
    ["Artist", "ISRC", "UPC", "Team Percentage", "Songwriter Royalties Withheld"]
)
# I'm only interested in streams, so I'll drop all "Album" rows…
df = df.filter(col("Song/Album") != "Album")
# …and all Stores matching "iTunes*" (iTunes, iTunes Match and iTunes Songs).
df = df.filter(~col("Store").str.contains("iTunes"))
# Now we can drop the "Song/Album" column.
df = df.drop(["Song/Album"])

# Rename columns.
countries = countries.rename({"Numeric code": "Country numeric code"})
df = df.rename(
    {
        "Sale Month": "Sale",
        "Reporting Date": "Reported",
        "Country of Sale": "Country code",
        "Earnings (USD)": "Earnings",
        "Title": "Song",
    }
)

# Rename stores.
print(f"Before: {df["Store"].unique().to_list()}")
# Rename "Amazon $SERVICE (Streaming)" to "Amazon $SERVICE"
df = df.with_columns(col("Store").str.replace(" (Streaming)", "", literal=True))
# Rename Facebook to Meta (as it's really FB and IG).
df = df.with_columns(col("Store").str.replace("Facebook", "Meta"))
# More renaming…
df = df.with_columns(col("Store").str.replace("Google Play All Access", "Google Play Music"))

# Set the proper data types.
df = df.with_columns(
    col("Sale").str.to_datetime("%Y-%m"),
    col("Reported").str.to_datetime("%Y-%m-%d"),
)

store_datapoints = df.group_by("Store").len().sort("len")
min_n = 20
stores_to_drop = list(
    store_datapoints.filter(col("len") < 20).select("Store").to_series()
)
df = df.filter(~col("Store").is_in(stores_to_drop))

# Country from country code.
countries = pl.read_csv("data/country_codes.csv")
# DistroKid (or Facebook?) uses "OU" for "Outside the United States".
missing_codes = pl.DataFrame(
    {
        "Country": ["Outside the United States"],
        "Alpha-2": ["OU"],
        "Alpha-3": [""],
        "Country numeric code": [None],
    }
)
countries = countries.vstack(missing_codes)
df = df.join(countries, how="left", left_on="Country code", right_on="Alpha-2")

# Year when the streams happened.
df = df.with_columns(col("Sale").dt.year().alias("Year"))

# Earnings per unit (stream).
df = df.with_columns((col("Earnings") / col("Quantity")).alias("USD per stream"))

# Earnings per second (of full track length).
df = df.with_columns((col("USD per stream") / col("Duration")).alias("USD per second"))

df.select(pl.sum("Quantity")).item()

# Somewhat conservative approach: 30 seconds per stream
# It's the minimum required by Spotify/Apple Music, and average length of TikTok videos and probably Instagram reels.
from datetime import datetime, timedelta
from dateutil.relativedelta import relativedelta

seconds_per_stream = 30

start_date = datetime(1, 1, 1)
end_date = start_date + timedelta(seconds=total_quantity * seconds_per_stream)

relativedelta(end_date, start_date)

# DistroKid (or Meta?) uses "OU" for "Outside the United States".
df.filter(col("Country code") != "OU").select(col("Country")).n_unique()

# Barplot with year/number of countries.
width = "container"
height = 350

# HTML slider to control the year.
year_slider = alt.binding_range(
    name="Year ",
    min=df["Year"].min(),
    max=df["Year"].max(),
    step=1,
)

# Selecting a year through slider/clicking on the bars will update the map.
year_selection = alt.selection_point(
    fields=["Year"],
    value=df["Year"].max(),
    empty=True,  # Upon reset shows all countries (though with the Quantity of their first appearance)
    on="click, touchend",
    bind=year_slider,
)

# Hovering over a bar will add a stroke.
hover = alt.selection_point(
    empty=False,
    on="mouseover",
    clear="mouseout",
    fields=["Countries"],
)

# The actual barplot.
num_countries_per_year = (
    alt.Chart(unique_countries_per_year)
    .mark_bar(color="teal", cursor="pointer")
    .encode(
        x=alt.X("Year:O", title=None, axis=alt.Axis(labelAngle=0)),
        y=alt.Y("Countries:Q", axis=None, scale=alt.Scale(domain=[0, 800])),
        opacity=alt.condition(year_selection, alt.value(1), alt.value(0.5)),
        strokeWidth=alt.condition(hover, alt.value(2), alt.value(0)),
        stroke=alt.condition(hover, alt.value("black"), alt.value(None)),
    )
    .properties(width="container")
    .add_params(year_selection, hover)
)

# Add text with the number of countries at the end of the bars.
text_num_countries_per_year = num_countries_per_year.mark_text(
    align="center",
    baseline="middle",
    dy=-10,
    fontSize=20,
    font="Monospace",
    fontWeight="bold",
    color="teal",
    strokeOpacity=0,
).encode(text="Countries:Q")

bars_with_numbers = num_countries_per_year + text_num_countries_per_year

# Background for the bars for map layer.
unique_years = unique_countries_per_year["Year"].unique()
background_data = {"Year": unique_years, "Value": [120] * len(unique_years)}
background_df = pl.DataFrame(background_data)
background_white_bars = (
    alt.Chart(background_df)
    .mark_area(color="white")
    .encode(
        x=alt.X("Year:O", title=None, axis=None, scale=alt.Scale(padding=0)),
        y=alt.Y("Value:Q", title=None, axis=None, scale=alt.Scale(domain=[0, 800])),
    )
    .properties(width="container")
)

num_countries_chart = alt.layer(background_white_bars, bars_with_numbers).resolve_scale(
    x="independent"
)

plays_per_year_country = (
    df.group_by(["Country numeric code", "Country", "Year"])
    .agg(col("Quantity").sum())
    .sort("Quantity", descending=True)
)

hover_country = alt.selection_point(on="mouseover", empty=False, fields=["Country"])

source = alt.topo_feature(data.world_110m.url, "countries")
projection = "equirectangular"

base = (
    alt.Chart(source)
    .mark_geoshape(fill="lightgray", stroke="white", strokeWidth=0.5)
    .properties(width="container", height=height)
    .project(projection)
)

color_scale = alt.Scale(
    domain=(
        0,
        # Not using `max()` for protection against outliers.
        plays_per_year_country["Quantity"].quantile(0.98),
    ),
    scheme="teals",
    type="linear",
)

legend = alt.Legend(
    title=None,
    titleFontSize=14,
    labelFontSize=12,
    orient="none",
    gradientLength=height / 3,
    gradientThickness=10,
    direction="vertical",
    fillColor="white",
    legendX=0,
    legendY=130,
    format="0,.0~s",
    tickCount=1,
)

choropleth = (
    alt.Chart(plays_per_year_country)
    .mark_geoshape(stroke="white")
    .encode(
        color=alt.Color("Quantity:Q", scale=color_scale, legend=legend),
        tooltip=[
            alt.Tooltip("Country:N", title="Country"),
            alt.Tooltip("Quantity:Q", title="Plays", format=",.0s"),
        ],
        strokeWidth=alt.condition(hover_country, alt.value(2), alt.value(0.5)),
    )
    .transform_filter(year_selection)
    .transform_lookup(
        lookup="Country numeric code",
        from_=alt.LookupData(source, "id", ["type", "properties", "geometry"]),
    )
    .project(type=projection)
    .properties(width="container", height=height)
    .add_params(hover_country)
)

map_with_bars = base + choropleth + num_countries_chart

map_with_bars = configure_chart(
    chart=map_with_bars,
)

map_with_bars.display()

mean_usd_per_service.select(["USD per stream", "Store"])

# Function to round to the first two non-zero decimal numbers.
def round_to_n_non_zero_decimal(input_float: float, n: float = 2) -> float:
    input_str = f"{input_float:.10f}"  # Use scientific notation to handle very small or large numbers.
    split_number = re.split("\\.", input_str)

    # If there's no decimal part or it's all zeros, return the input as it's already rounded.
    if len(split_number) == 1 or not split_number[1].strip("0"):
        return input_float

    integer, decimals = split_number
    n_decimal_zeroes = re.search("[1-9]", decimals).start()
    non_zero_decimals = decimals[n_decimal_zeroes:]
    scaled_decimal_for_rounding = int(non_zero_decimals) / 10 ** (
        len(non_zero_decimals) - n
    )
    new_non_zero_decimals_float = round(scaled_decimal_for_rounding, n)
    new_non_zero_decimals_str = str(new_non_zero_decimals_float).split(".")[0]
    new_zeroes = "".join((["0"] * n_decimal_zeroes))[
        len(new_non_zero_decimals_str) - n :
    ]
    new_decimals = new_zeroes + new_non_zero_decimals_str
    rounded_number_str = integer + "." + new_decimals
    return float(rounded_number_str)

# Apply rounding to USD per stream.
mean_usd_per_service = mean_usd_per_service.with_columns(
    col("USD per stream")
    .map_elements(round_to_n_non_zero_decimal)
    .alias("Rounded USD per stream")
)

# Graph.
bar_chart = (
    alt.Chart(mean_usd_per_service)
    .mark_bar(cornerRadiusTopRight=15, cornerRadiusBottomRight=15)
    .encode(
        x=alt.X(
            "USD per stream:Q",
            axis=alt.Axis(
                title=None,
                tickCount=5,
                labelExpr="datum.value === 0 ? '$0' : format(datum.value, '0,.5~f')",
            ),
            scale=alt.Scale(
                type="linear",
            ),
        ),
        y=alt.Y("Store:N", axis=alt.Axis(title=None), sort="-x"),
        color=alt.Color(
            "Store:N",
            scale=alt.Scale(domain=domain, range=range_),  # Use custom colours.
            legend=None,
        ),
    )
)

# Add total number next to the bar.
text_chart = bar_chart.mark_text(
    align="left",
    baseline="middle",
    dx=5,  # Move the text a bit to the right.
    fontSize=20,
    font="Monospace",
    fontWeight="bold",
    color="white",
).encode(text=alt.Text("Rounded USD per stream:Q", format=","))

average_pay_per_stream = bar_chart + text_chart

year_credits_text = create_year_credits_text(x=-170, y=570)
average_pay_per_stream = alt.layer(average_pay_per_stream, year_credits_text)

average_pay_per_stream = configure_chart(
    chart=average_pay_per_stream,
).properties(
    width="container",
    height=550,
    padding={"left": 0, "top": 0, "right": 30, "bottom": 0},
)

average_pay_per_stream.display()

# Melt is used to allow selecting mean/median in Vega-Altair.

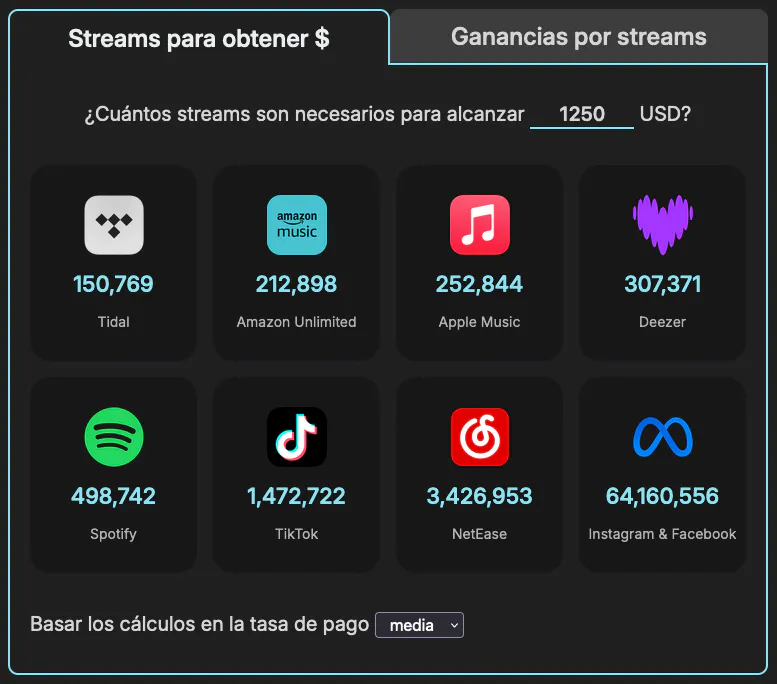

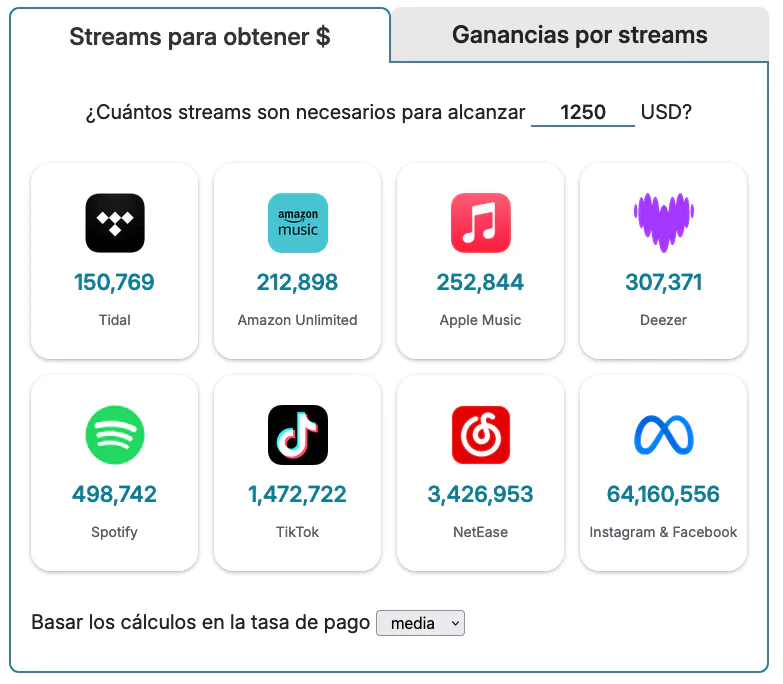

streams_for_a_dollar = (
    df.group_by("Store")
    .agg(
        [
            streams_for_one_usd(pl.mean("USD per stream")).alias("mean"),
            streams_for_one_usd(pl.median("USD per stream")).alias("median"),
        ]
    )
    .melt(
        id_vars=["Store"],
        value_vars=["mean", "median"],
        value_name="Value",
        variable_name="Metric",
    )
)

# Graph.
metric_radio = alt.binding_radio(
    options=["mean", "median"], name="Calculation based on"
)
metric_select = alt.selection_point(fields=["Metric"], bind=metric_radio, value="mean")

bar_chart = (
    alt.Chart(streams_for_a_dollar)
    .mark_bar(cornerRadiusTopRight=15, cornerRadiusBottomRight=15)
    .encode(
        x=alt.X(
            "Value:Q",
            title="Streams to reach $1",
            axis=alt.Axis(title=None, format="s"),
            scale=alt.Scale(type="log"),
        ),
        y=alt.Y(
            "Store:N",
            title=None,
            sort=alt.EncodingSortField(field="Value", op="median", order="ascending"),
        ),
        opacity=alt.condition(metric_select, alt.value(1), alt.value(0)),
        color=alt.Color(
            "Store:N",
            scale=alt.Scale(domain=domain, range=range_),
            legend=None,
        ),
    )
    .add_params(metric_select)
)

# Add total number next to the bar.
text_chart = bar_chart.mark_text(
    align="left",
    baseline="middle",
    dx=5,
    fontSize=20,
    font="Monospace",
    fontWeight="bold",
).encode(
    text=alt.Text("Value:Q", format=","),
)

plays_for_one_dollar = bar_chart + text_chart

year_credits_text = create_year_credits_text(x=-170, y=570)
plays_for_one_dollar = alt.layer(plays_for_one_dollar, year_credits_text)

plays_for_one_dollar = configure_chart(
    chart=plays_for_one_dollar,
).properties(width=789, height=550)

plays_for_one_dollar.display()

store_payments = df.select(["Store", "USD per stream"])

# Drop top and bottom 1% of pay rate per store.
lower_quantile = 0.01
upper_quantile = 0.99
percentiles = df.group_by("Store").agg(
    [
        pl.col("USD per stream").quantile(lower_quantile).alias("lower_threshold"),
        pl.col("USD per stream").quantile(upper_quantile).alias("upper_threshold"),
    ]
)

trimmed_df = (
    df.join(percentiles, on="Store", how="left")
    .filter(
        (pl.col("USD per stream") >= pl.col("lower_threshold"))
        & (pl.col("USD per stream") <= pl.col("upper_threshold"))
    )
    .drop(["lower_threshold", "upper_threshold"])
)

jittered_scatter_plot = (
    alt.Chart(trimmed_df)
    .mark_circle(size=60, opacity=0.2)
    .encode(
        x=alt.X(
            "USD per stream:Q",
            axis=alt.Axis(
                title=None,
                labelExpr="datum.value === 0 ? '$0' : format(datum.value, '0,.5~f')",
            ),
        ),
        y=alt.Y(
            "Store:N",
            sort=alt.EncodingSortField(
                field="USD per stream", op="median", order="descending"
            ),
            axis=alt.Axis(title=None),
        ),
        color=alt.Color(
            "Store:N",
            scale=alt.Scale(domain=domain, range=range_),  # Use custom colours.
            legend=None,
        ),
        yOffset=alt.Y("jitter:Q", title=None),
    )
    .transform_calculate(jitter="sqrt(-2*log(random()))*cos(2*PI*random())")
)

# Add indicators for each store's median.
median_dots = (
    alt.Chart(trimmed_df)
    .mark_point(opacity=1, shape="diamond", filled=False, size=120)
    .encode(
        x="median(USD per stream):Q",
        y=alt.Y(
            "Store:N",
            sort=alt.EncodingSortField(
                field="USD per stream", op="median", order="descending"
            ),
            axis=None,
        ),
        color=alt.value("black"),
        tooltip=[
            alt.Tooltip("Store", title="Service"),
            alt.Tooltip("median(USD per stream)", title="Median pay rate"),
        ],
    )
)

final_plot_with_jitter = alt.layer(jittered_scatter_plot, median_dots).resolve_scale(
    y="independent"
)

year_credits_text = create_year_credits_text(x=-170, y=570)
final_plot_with_jitter = alt.layer(final_plot_with_jitter, year_credits_text)

final_plot_with_jitter = configure_chart(
    chart=final_plot_with_jitter,
).properties(width="container", height=550)

final_plot_with_jitter.display()

# Prepare the data.
store_usd_per_stream = trimmed_df.select(["Store", "USD per stream"])

# Graph.
dropdown_store_1 = alt.binding_select(options=unique_stores, name="Service B ")
dropdown_store_2 = alt.binding_select(options=unique_stores, name="Service A ")
selection_store_1 = alt.selection_point(
    fields=["Store"], bind=dropdown_store_1, value="Spotify"
)
selection_store_2 = alt.selection_point(
    fields=["Store"], bind=dropdown_store_2, value="Apple Music"
)

min_usd_per_stream = trimmed_df["USD per stream"].min()
max_usd_per_stream = trimmed_df["USD per stream"].max()

base_density_chart = alt.Chart(store_usd_per_stream).transform_density(
    density="USD per stream",
    bandwidth=0.0004,
    extent=[min_usd_per_stream, max_usd_per_stream],
    groupby=["Store"],
    as_=["USD per stream", "Density"],
)

density_plot_1 = (
    base_density_chart.transform_filter(selection_store_1)
    .mark_area(opacity=0.6)
    .encode(
        x=alt.X(
            "USD per stream:Q",
            title=None,
            axis=alt.Axis(
                grid=False,
                labelExpr="datum.value === 0 ? '$0' : format(datum.value, '0,.5~f')",
            ),
        ),
        y=alt.Y("Density:Q", title=None, axis=None),
        color=alt.Color(
            "Store:N", legend=None, scale=alt.Scale(domain=domain, range=range_)
        ),
        tooltip=[alt.Tooltip("Store", title="Service")],
    )
    .add_params(selection_store_1)
)
density_plot_2 = (
    base_density_chart.transform_filter(selection_store_2)
    .mark_area(opacity=0.6)
    .encode(
        x=alt.X("USD per stream:Q", title=None),
        y=alt.Y("Density:Q", title=None, axis=None),
        color=alt.Color(
            "Store:N", legend=None, scale=alt.Scale(domain=domain, range=range_)
        ),
        tooltip=[alt.Tooltip("Store", title="Service")],
    )
    .add_params(selection_store_2)
)

overlaid_density_plots = alt.layer(density_plot_1, density_plot_2)

compare_distributions = configure_chart(
    chart=overlaid_density_plots,
).properties(width="container", height=200)

compare_distributions.display()

apple_music_df = df.filter(col("Store") == "Apple Music")
# Percentiles y otras estadísticas.
apple_music_df.select("USD per stream").describe()

total_apple_music_streams = apple_music_df.count().select("Quantity").item()
streams_over_80_percent_apple_music = (
    apple_music_df.filter(col("USD per stream") > 0.008)
    .count()
    .select("Quantity")
    .item()
)

spotify_df = df.filter(col("Store") == "Spotify")
grouped_spotify = (
    spotify_df.group_by(["Year", "Song"])
    .sum()
    .select(["Year", "Song", "Quantity", "Earnings"])
    .sort("Quantity", descending=False)
)

spotify_per_year = (
    grouped_spotify.group_by("Year")
    .sum()
    .select(["Year", "Quantity", "Earnings"])
    .sort("Year")
)

unpaid_streams = grouped_spotify.filter(col("Quantity") < 1000)
unpaid_streams_per_year = (
    unpaid_streams.group_by("Year")
    .sum()
    .select(["Year", "Quantity", "Earnings"])
    .sort("Year")
)

spotify_yearly_earnings = spotify_per_year.join(
    other=unpaid_streams_per_year,
    on="Year",
    how="left",
    suffix="_unpaid",
)

unpaid_spotify = spotify_yearly_earnings.with_columns(
    (col("Quantity_unpaid") / col("Quantity") * 100).alias("Unpaid streams %"),
    (col("Earnings_unpaid") / col("Earnings") * 100).alias("Unpaid USD %"),
)

unpaid_spotify_dollars = unpaid_spotify.select(pl.sum("Earnings_unpaid")).item()
print(
    f'Had the "modernized" royalty system been applied for the last {spotify_per_year.height} years, I would\'ve missed out on USD {round(unpaid_spotify_dollars, 2)},'
)
print(
    f"which represents {round(unpaid_spotify_dollars / spotify_per_year.select(pl.sum('Earnings')).item() * 100, 2)}% of my Spotify earnings."
)
